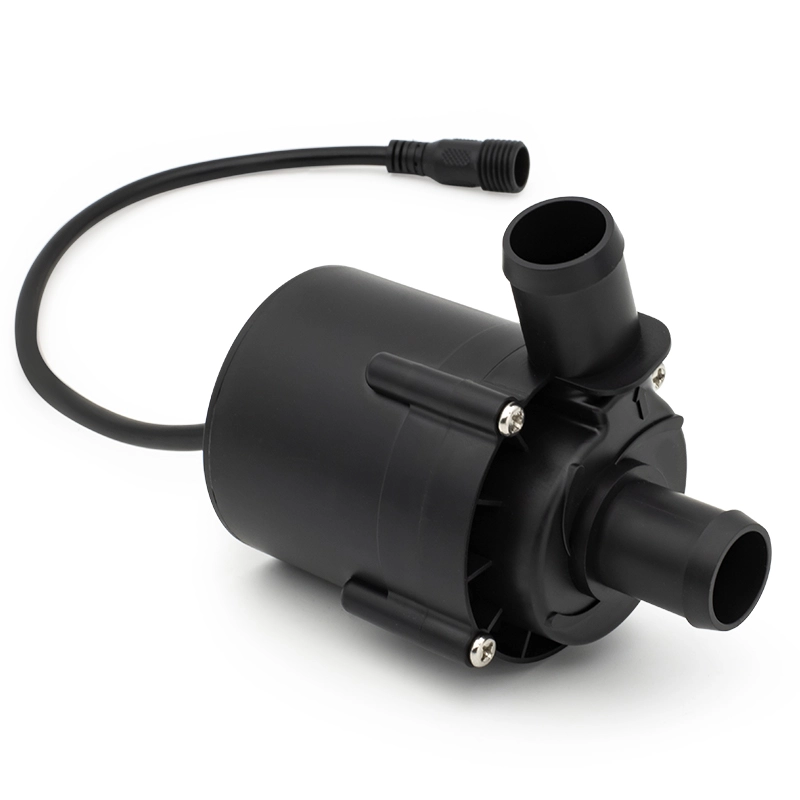

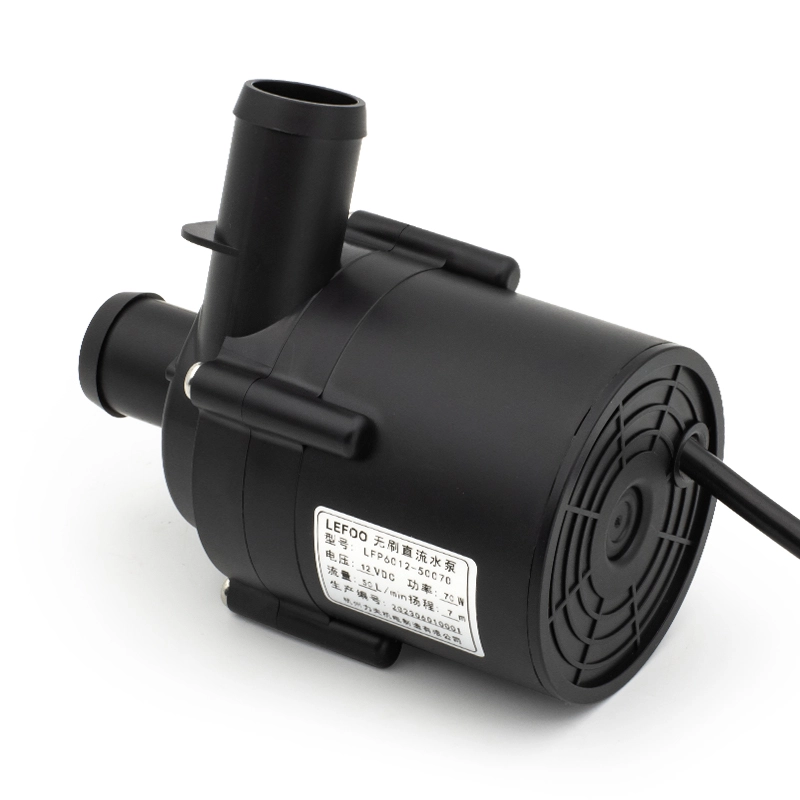

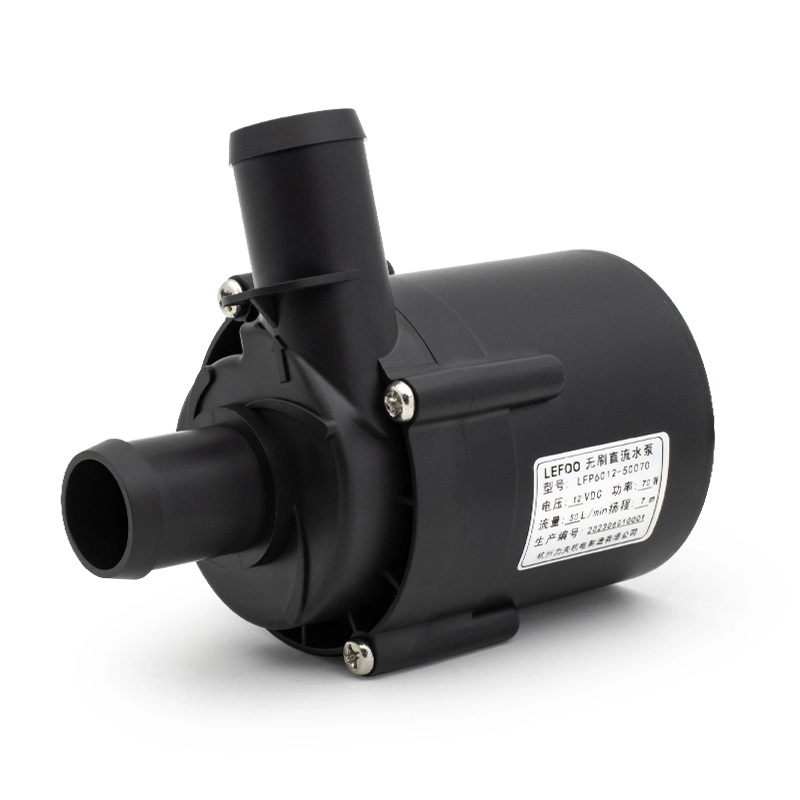

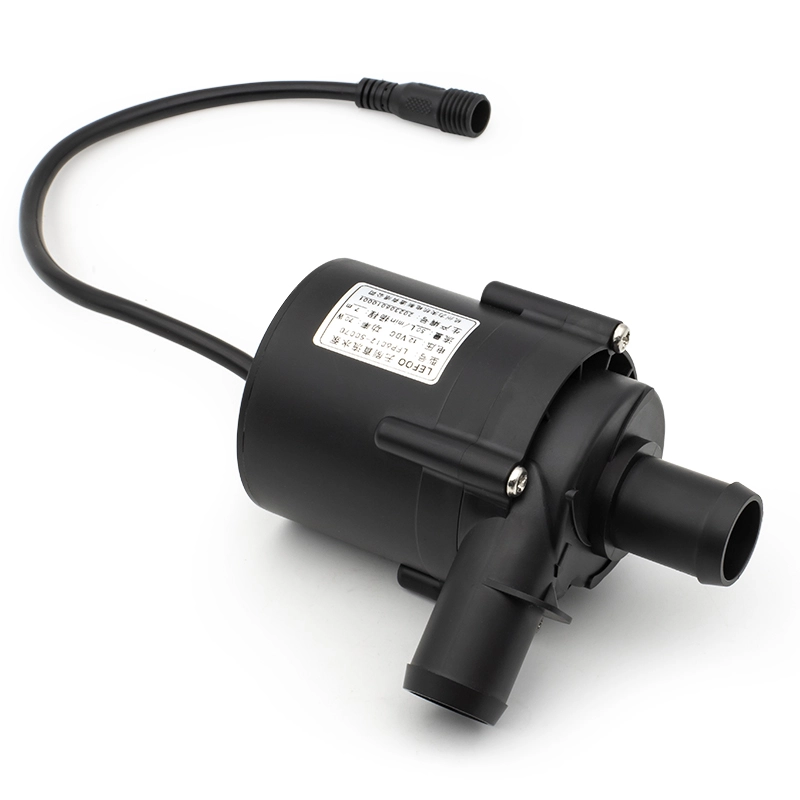

Lefoo 12VDC Brushless Circulation Pump

TECHNICAL PARAMETER

BLDC WATER PUMP 24V are also available.

• Low Noise: Adopting low vibration and low noise FOC control method and suspended rotor design, the noise is as low as 25dB(A)

• Long lifetime: Matching three-phase brushless DC motor and self-lubricating rotating structure, lifetime is over 20,000 hours

• Large flow rate, High lift of pump: Using high-efficiency closed impeller and intelligent control motor, the flow and lift performance is more stable and the lift of pump is higher.

• Customized is available: Can be customized functions like lP68 grade, PwM speed control, 0-5V speed control, etc.

• Full protection functions: Multiple protection functions of no-load running, blocked rotor, reverse connection, over-current, etc.

• No leakage: Static seal design, isolates the stator from the liquid, high-strength and high-temperature resistant polyme plastic, no deformation and no leakage risk

• Certifications: Compliant with CE, RoHS, FDA, CQC certifications.

• Cooling system for computer

• Fruit, and vegetable washing machine

• Intelligent toilet

• Dishwasher

• Boosting system

• Water circulation

• Beverage industry

• Solar fountain

• Mini fountain on the table

• Artwork

• Coffeemaker

• Water dispenser

• Tea device

• Pumping wine into the cup

• Taking shower

• Water heater pressure

• Water heater circulate

• Swimming pool circulate

• Massage and surfing in the bathtub

• Cooling system circulates for car

• Greaser

• Humidifier

• Air conditioning equipment

• Washing machine

• Medical apparatus and instruments

• Coolant system

• Bathroom products

Q1: What applications is the LFP40 Series circulation pump suitable for?

A: The LFP40 Series is designed for closed-loop water circulation systems. It is widely used in water purifiers, instant hot water dispensers, coffee machines, beverage equipment, and other appliances requiring continuous water circulation.

Q2: What are the advantages of the brushless DC motor?

A: The three-phase brushless DC motor offers low noise, high efficiency, maintenance-free operation, and a service life of more than 20,000 hours, ensuring reliable long-term performance.

Q3: How quiet is the pump during operation?

A: The pump adopts FOC control technology and a suspended rotor design, keeping the operating noise as low as 25 dB(A), making it ideal for household and commercial equipment.

Q4: Can the pump operate continuously?

A: Yes. The LFP40 Series is designed for continuous-duty operation and provides stable hot water circulation for 24/7 applications.

Q5: What protection functions does the pump have?

A: The pump features multiple built-in protections, including dry-running protection, locked-rotor protection, reverse polarity protection, and over-current protection for safer and more reliable operation.

Q6: Is customization available?

A: Yes. We can customize features such as IP68 waterproof protection, PWM speed control, 0–5V speed control, and other functions based on your project requirements.

Q7: Does the pump have a leakage risk?

A: No. The pump adopts a static sealing structure that completely isolates the stator from the liquid. The high-strength engineering plastic housing provides excellent sealing performance with no leakage risk.

Q8: What certifications does the pump have?

A: The LFP40 Series complies with CE, RoHS, FDA, and CQC standards, meeting the requirements of global markets.
