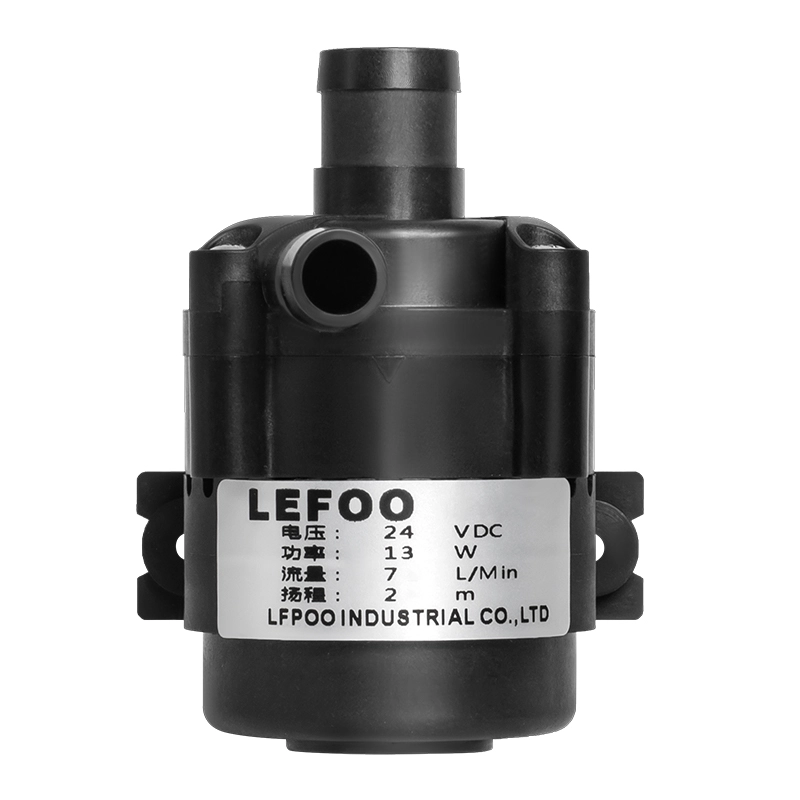

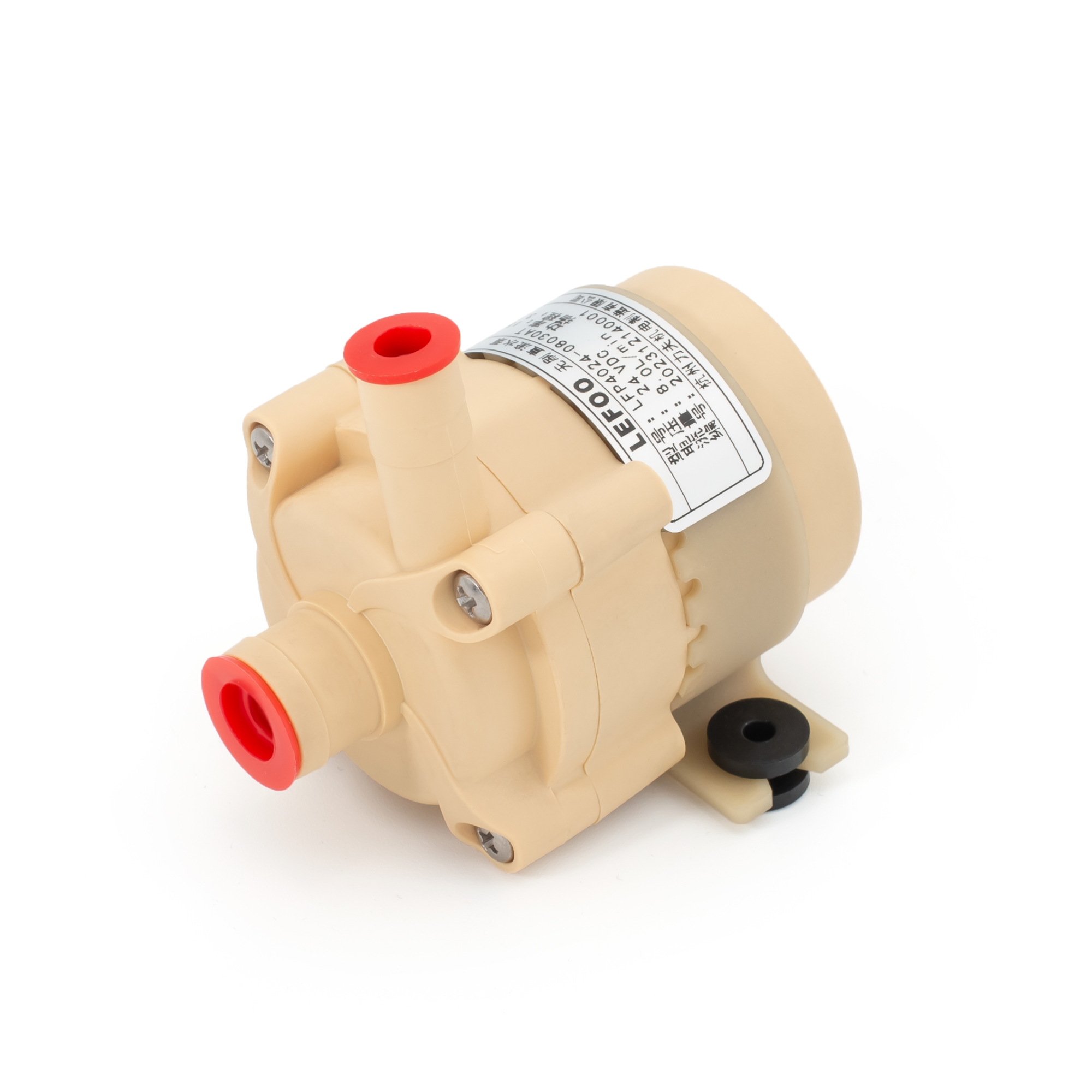

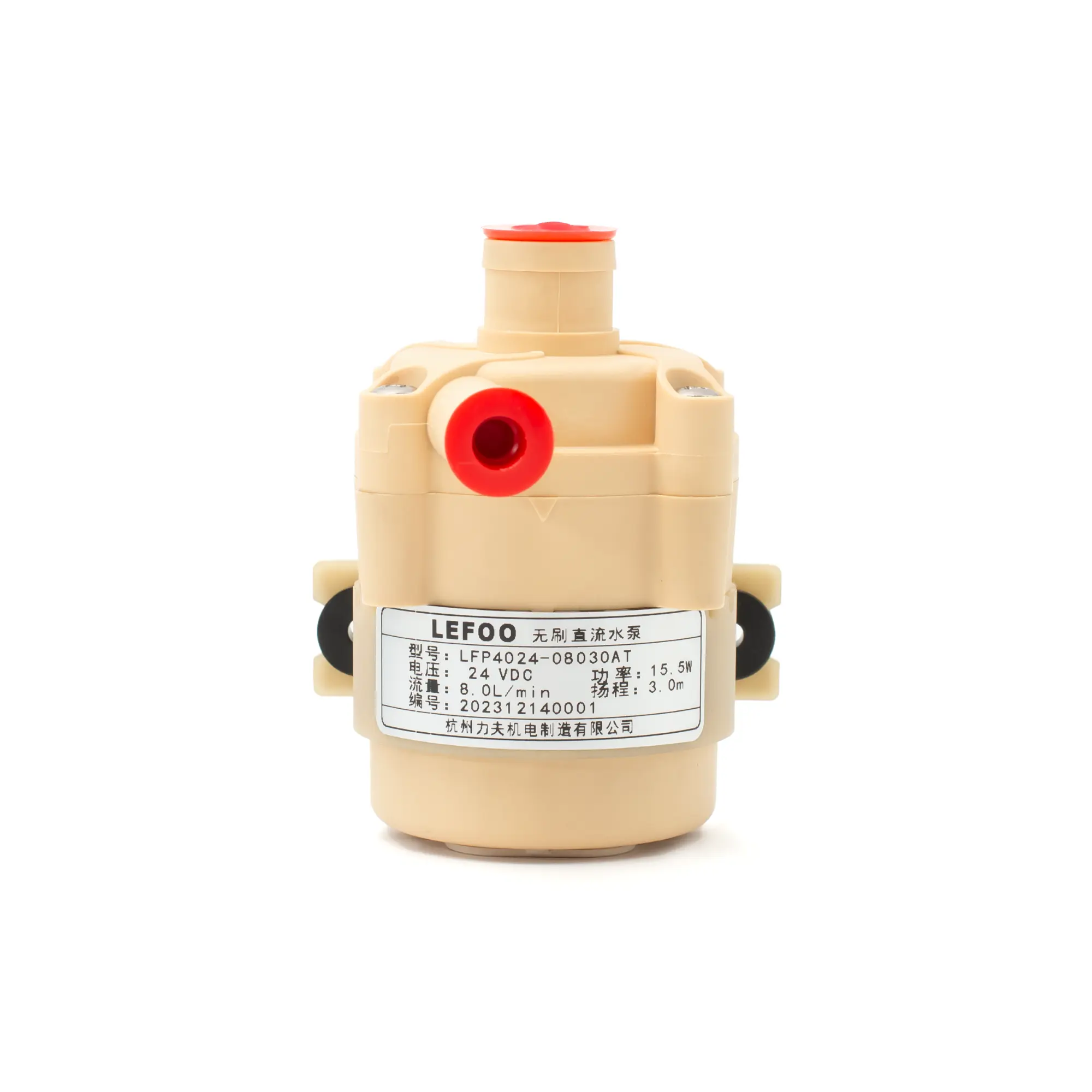

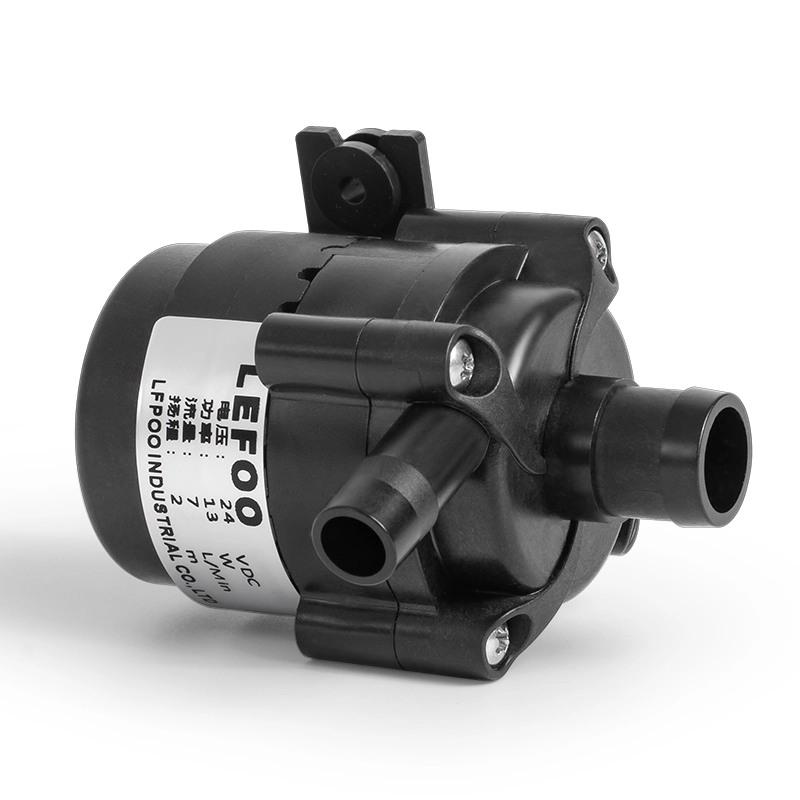

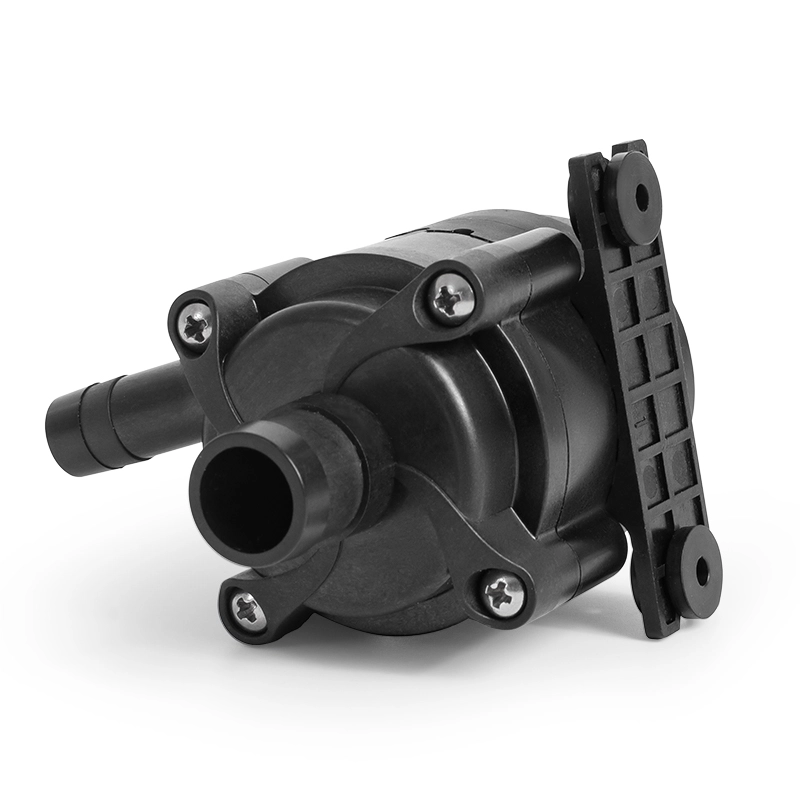

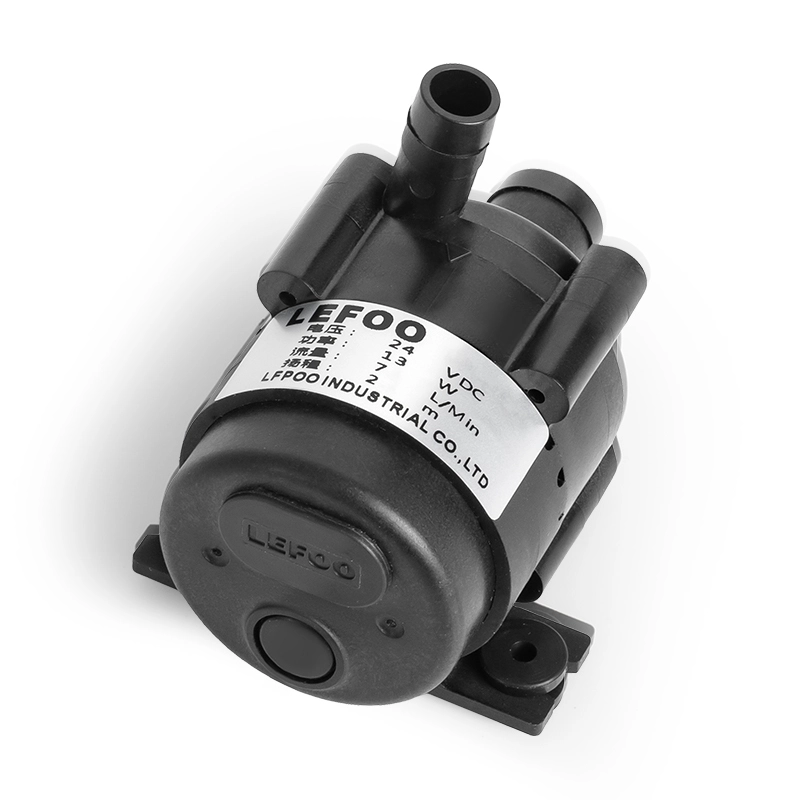

Lefoo 24VDC Brushless Circulation Pump

TECHNICAL PARAMETER

• Low Noise: Adopting low vibration and low noise FOC control method and suspended rotor design, the noise is as low as 25dB(A)

• Long lifetime: Matching three-phase brushless DC motor and self-lubricating rotating structure, lifetime is over 20,000 hours

• Large flow rate, High lift of pump: Using high-efficiency closed impeller and intelligent control motor, the flow and lift performance is more stable and the lift of pump is higher.

• Customized is available: Can be customized functions like lP68 grade, PwM speed control, 0-5V speed control, etc.

• Full protection functions: Multiple protection functions of no-load running, blocked rotor, reverse connection, over-current, etc.

• No leakage: Static seal design, isolates the stator from the liquid, high-strength and high-temperature resistant polyme plastic, no deformation and no leakage risk

• Certifications: Compliant with CE, RoHS, FDA, CQC certifications.

• Cooling system for computer

• Fruit, and vegetable washing machine

• Intelligent toilet

• Dishwasher

• Boosting system

• Water circulation

• Beverage industry

• Solar fountain

• Mini fountain on the table

• Artwork

• Coffeemaker

• Water dispenser

• Tea device

• Pumping wine into the cup

• Taking shower

• Water heater pressure

• Water heater circulate

• Swimming pool circulate

• Massage and surfing in the bathtub

• Cooling system circulates for car

• Greaser

• Humidifier

• Air conditioning equipment

• Washing machine

• Medical apparatus and instruments

• Coolant system

• Bathroom products

Q1: What applications is the LFP60 Series circulation pump suitable for?

A: The LFP60 Series is designed for closed-loop water circulation systems. It is widely used in water filtration equipment, coffee machines, beverage dispensers, water heaters, and other applications requiring continuous water circulation.

Q2: What are the benefits of using a circulation pump?

A: The pump keeps hot water circulating through the pipeline, providing instant hot water, reducing waiting time, minimizing water waste, and improving the overall efficiency of the water circulation system.

Q3: Can the pump operate continuously?

A: Yes. The LFP60 Series is designed for continuous-duty operation. Its three-phase brushless DC motor and self-lubricating structure ensure stable performance with a service life of over 20,000 hours.

Q4: How quiet is the pump during operation?

A: The pump adopts advanced FOC control technology and a suspended rotor design, keeping operating noise as low as 25 dB(A), making it suitable for residential and commercial equipment.

Q5: What safety protection functions does the pump have?

A: The pump includes multiple protection features, including dry-running protection, locked-rotor protection, reverse polarity protection, and over-current protection, ensuring safe and reliable operation.

Q6: Is the pump leak-proof?

A: Yes. The pump features a static sealing structure that completely isolates the stator from the liquid. Combined with a high-strength engineering plastic housing, it provides excellent sealing performance and minimizes leakage risk.

Q7: Can LEFOO provide customized solutions?

A: Yes. OEM and ODM services are available. Optional features include IP68 waterproof rating, PWM speed control, 0–5V speed control, and other customized functions based on customer requirements.

Q8: What certifications does the pump have?

A: The LFP60 Series complies with CE, RoHS, FDA, and CQC standards, meeting the requirements of global markets and OEM applications.
